What makes the Magnum tarp system, an Extreme Duty tarp system?

  • The 3/4″ solid steel elbow withstands more abuse and shock loads while offering greater container adjustability than the competition.
  • The low-profile pivot assembly maintains the arms and pivot below the container floor, unlike the ‘tombstone’ style tarping systems.
  • All pivot points feature self-lubricating bushings, eliminating the need for bi-weekly applications of grit-attracting grease.
  • The upper arms are equipped with deflectors to prevent damage from compactors, bowed containers, and operator errors.
  • Matched displacement lifting cylinders keep the arms aligned without the need for problematic valves that degrade and require replacement.

Upper Arms with Deflectors and 3/4” Solid Steel Elbows

  • More durable, absorbing more abuse and offering greater adjustability compared to competitors.
  • Capable of easily covering containers of 20, 30, 40, and up to 24′ 50-yard sizes, with the roller sitting on the container’s rear.
  • Upper arms remain operational even if bent or damaged, unlike telescoping arm systems.
  • Arm deflectors strengthen the arms, enabling them to deflect off compactor hinges, bowed containers, and driver errors.

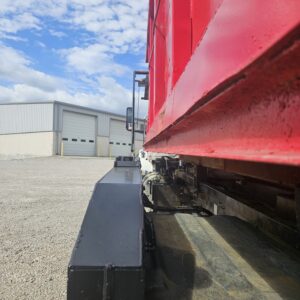

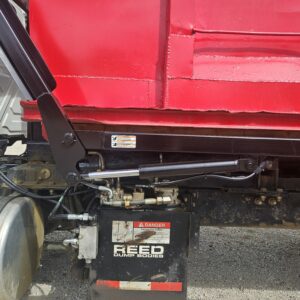

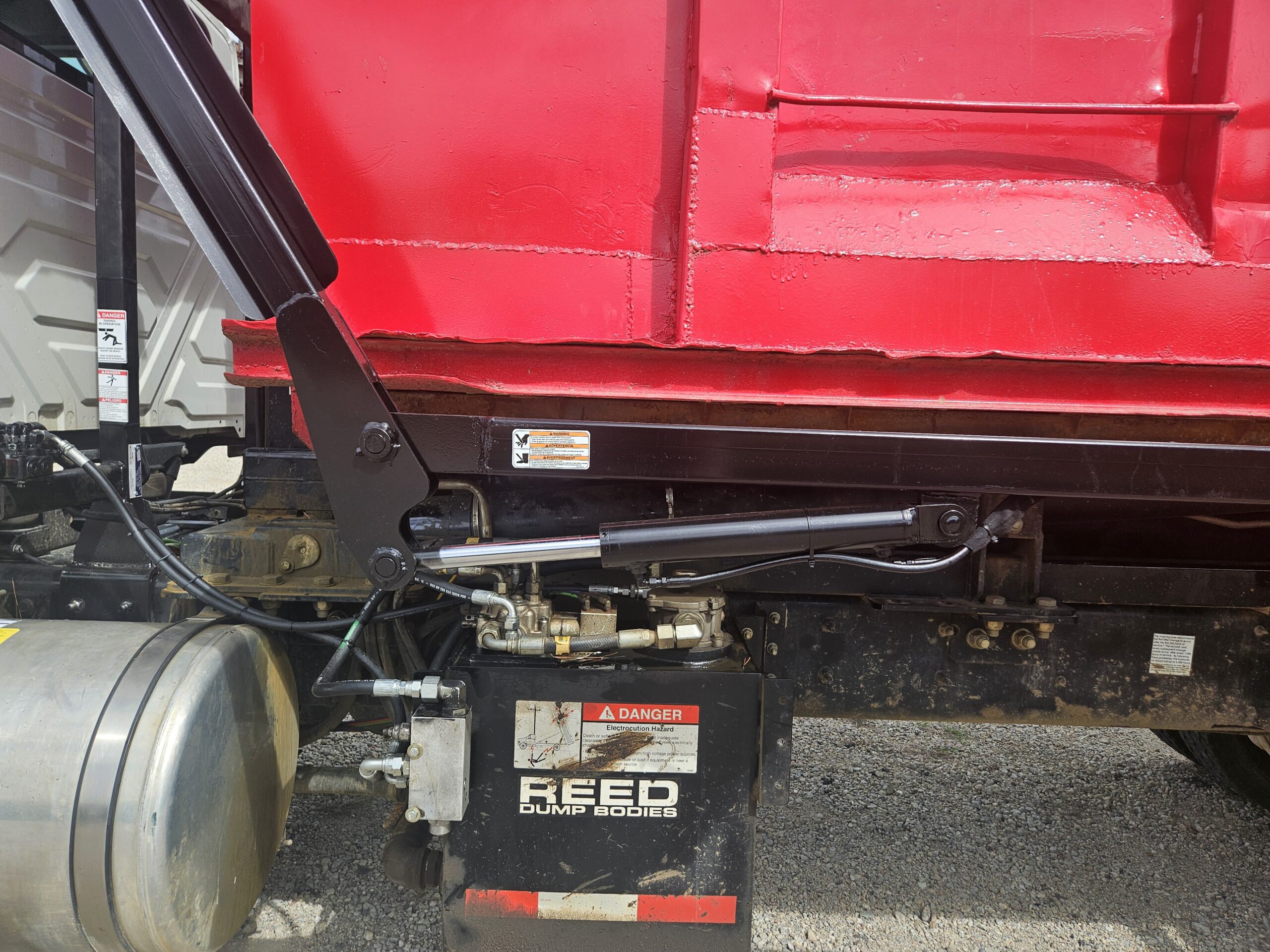

Pivot Assembly with Matched Displacement Cylinders

  • The lower arm and main pivot assembly are completely below the container floor, contrasting with “tombstone” style tarpers.
  • Matched displacement lifting cylinders eliminate the need for problematic valves to synchronize the arms.
  • The enclosed pivot assembly enhances cylinder longevity by protecting it.
  • Free from exposed gears, preventing jamming or debris accumulation.

The Total Tarping Package

  • Provides total load containment for 20 to 24′ 50 yard containers.
  • The tarp roller and/or stabilizer bar are designed to sit on the container’s rear, not extending beyond it.
  • A stronger design efficiently distributes tarping loads.
  • Offers a significantly lower cost of ownership compared to imported, tombstone-style tarp systems.

Compare the O'Brian Magnum-XD to the Pioneer Rack 'N Pinion

Features O'Brian Tarping Systems Magnum-XD Pioneer Rack & Pinion RP4500SAR
Grade-A5 Tubing Arm Structure Yes Yes
Roller Mounted Between the Arms Yes Yes
Adjustable Arms Yes Yes
Covers 20′, 30′ & 40′ Cubic Yard Cans Yes Yes
Covers 24′ & 50′ Cubic Yard Cans Yes No
Doesn’t Require Greasing Yes (Oil Impregnated Bushings) No Requires Bi-Weekly Greasing
1/4″ Arm Wall Thickness Yes No (3/16″ Arm Wall Thickness)
Integrated Upper Arm Deflectors Yes No (No Upper Arm Deflectors)
Pivot Point Below Container Floor Yes No (Above Floor Bottom)
Valveless Design Yes No (Needle Valves and Divider Combiner Valves Required for Arm Synchronization)

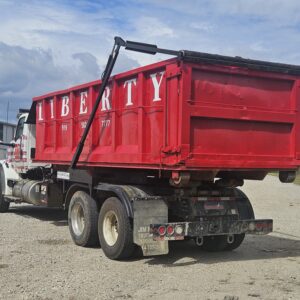

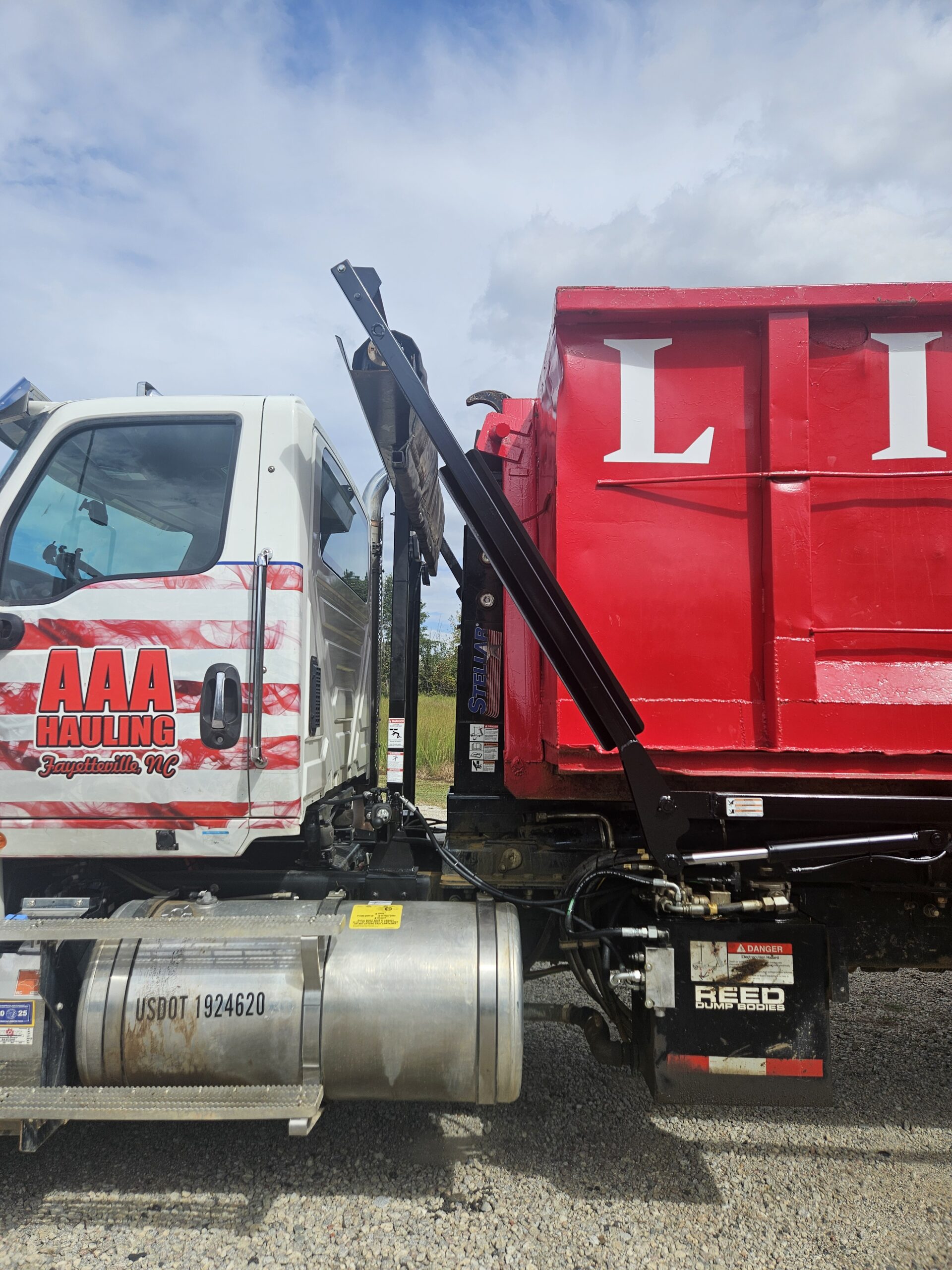

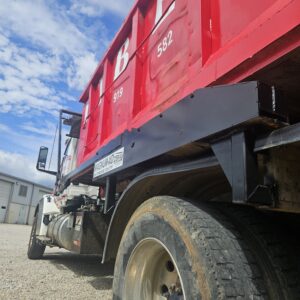

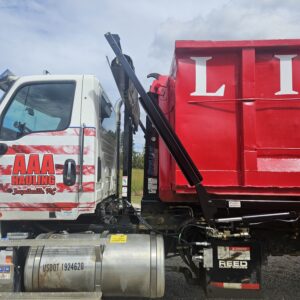

Magnum-XD Photo Gallery
